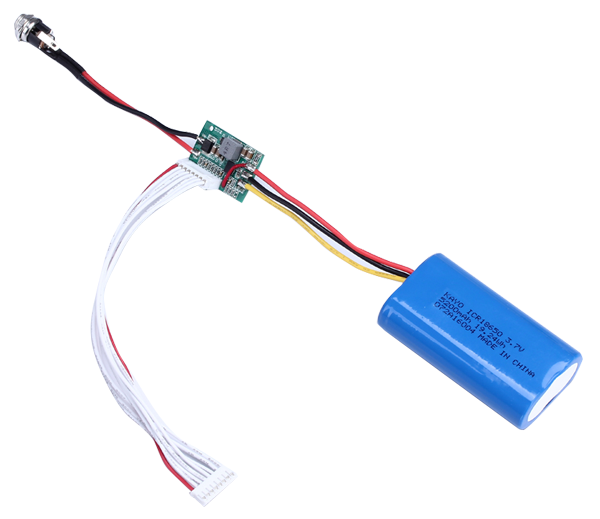

Cell Model: ICR18650-2600mAh
Battery Pack: 1S2P
Normal Voltage: 3.7V
Normal Capacity: 5200mAh
Standard Discharge: 0.2C (continuously)
Maximum Discharge： 1.0C (continuously)
Charging Temperature Range: 0~45℃
Discharge Temperature Range: -20~60℃
Dimensions： 20.0 x 37.5 x 68.0mm
Internal Impedance： ≤100mΩ
PCM Solution： IC- MM3280J01NRH + MOS- SIS8205A + NTC-10KΩ
Over-charge Protection Voltage: 4.25±0.02V/Cell
Over-discharge Protection Voltage: 2.5±0.035V/Cell
Over Current Protection： 2~4A
Charging Solution: BQ24100
