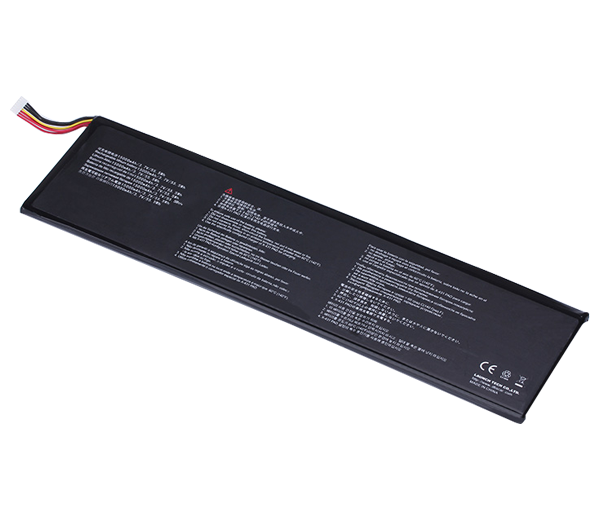

- Polymer Battery -

LA01

Cell Model: KPL638870-5000mAh
Battery Pack: 1S3P
Normal Voltage: 3.7V
Normal Capacity: 15000mAh
Standard Discharge: 0.2C (continuously)
Maximum Discharge: 3A (continuously)
Charging Temperature Range: 0~45℃
Discharge Temperature Range: -20~60℃
Dimensions: 6.8 x 71 x 264.5mm
Internal Impedance: ≤120mΩ
PCM Solution: IC- MM3280J05NRH + MOS- 8205A*2 +NTC-10KΩ
Over-charge Protection Voltage: 4.25±0.02V/Cell
Over-discharge Protection Voltage: 2.80±0.05V/Cell
Over Current Protection: 4~8A
