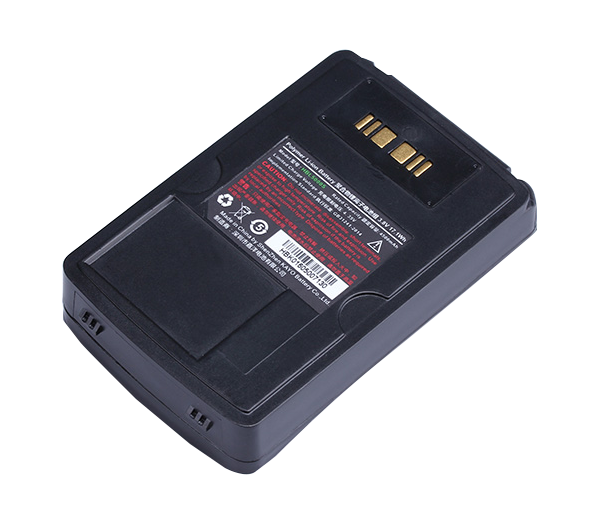

Cell Model: KPL604368-2250mAh
Battery Pack: 1S2P (Built in plastic case)
Normal Voltage: 3.8V
Normal Capacity: 4500mAh
Standard Discharge: 0.2C (continuously)
Maximum Discharge: 1C (continuously)
Charging Temperature Range: 0~45℃
Discharge Temperature Range: -20~60℃
Dimensions: 18.27 x 50.69 x 83.34mm
Internal Impedance: ≤100mΩ
PCM Solution: IC- S-8261CAR + MOS- UPA2381 +NTC-10KΩ
Over-charge Protection Voltage: 4.425±0.025V/Cell
Over-discharge Protection Voltage: 2.50±0.05V/Cell
Over Current Protection: 5~12A
SOC Solution: BQ27541
