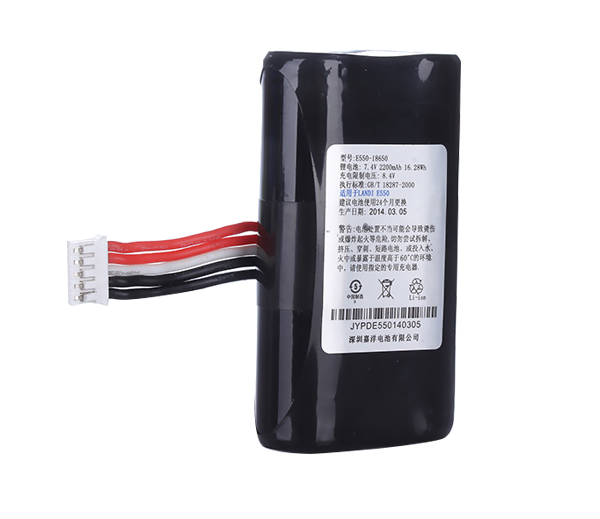

E550
Cell Model: ICR18650-2200mAh
Battery Pack: 2S1P
Normal Voltage: 7.4V
Normal Capacity: 2200mAh
Standard Discharge: 0.2C (continuously)
Maximum Discharge: 2C (continuously)
Charging Temperature Range: 0~45℃
Discharge Temperature Range: -20~60℃
Dimensions: 23.0 x 38.5 x 67.6mm (Maximum)
Internal Impedance: ≤200mΩ
PCM Solution: IC- S8252AAH + MOS – UPA1870 + NTC-10KΩ
Over-charge Protection Voltage: 4.25 ± 0.020V/Cell
Over-discharge Protection Voltage: 3.00 ± 0.05V
Over Current Protection: 3~8A
